DC Power Supplies
DC
Power Supplies
Quality, Reliability and Simple Operation

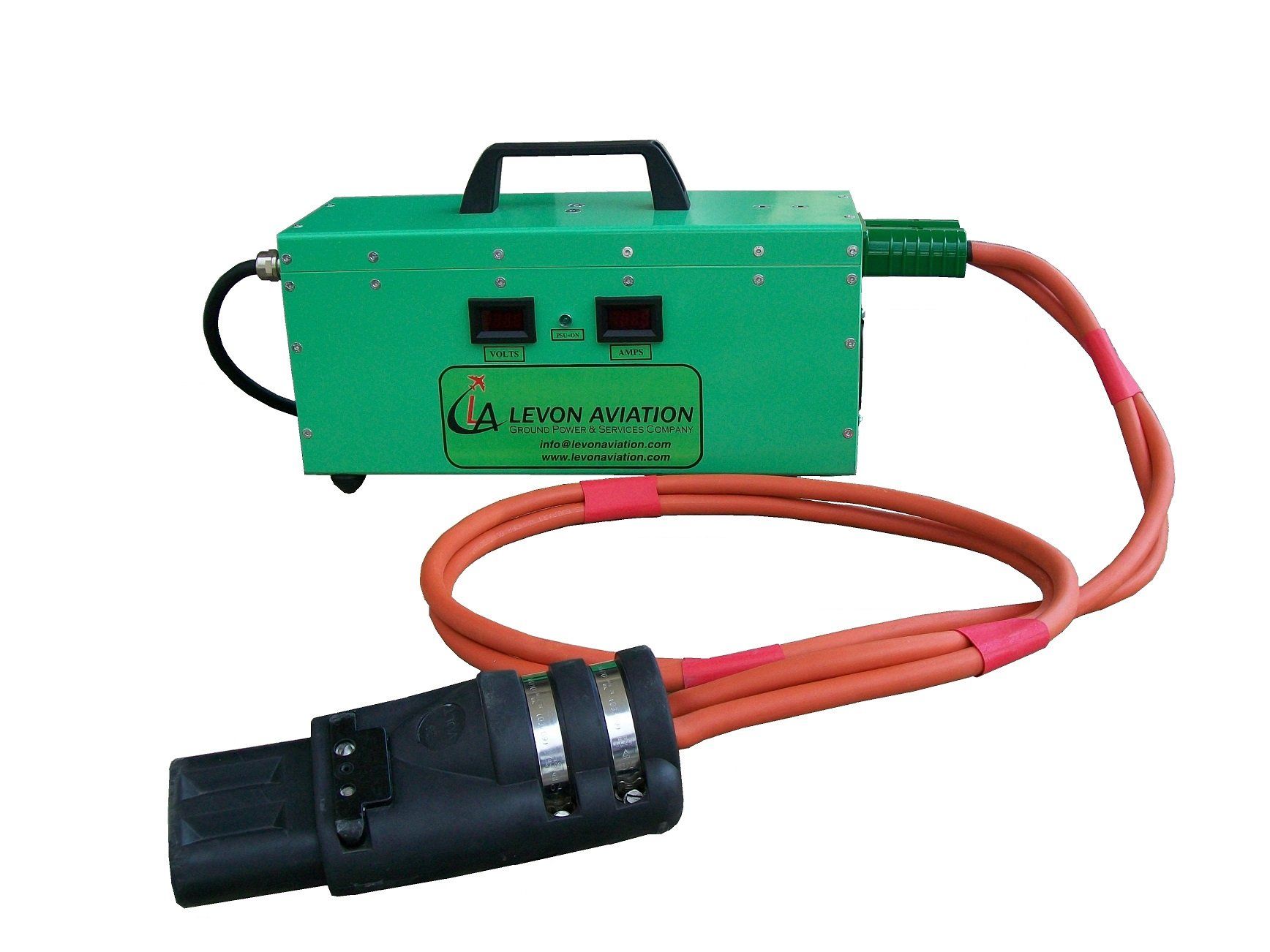

Levon Aviation DC Power Supplies are used for avionics work, maintenance, diagnostics and demonstrations. These GPUs are in operation at the hangars, maintenance facilities, airports around the world and are praised for their performance by both personnel and managers with regard to efficiency, safety and flexibility towards all kinds of aircraft.
Features
- Simple daily operation
- Supplied with 25m input cable
- Supplied with 3m output cable with rubber Aircraft plug
- Mobile trolley fitted with caster wheels (200A and above)
- All models can be connected in parallel (with optional parallel cable) to increase output power
- Optional waterproof cover
CONTINUOUS POWER MODELS
| Model Specifications | Input Voltage | Input Current | Output Voltage | Output Current | Peak Current | Length (mm) | Width (mm) | Height (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| LA50 (download datasheet) | 90-260VAC | 8A / 1 PHASE | 8.5VDC | 50A | 67.5A | 420 | 160 | 180 | 6 |
| LA100 (download datasheet) | 90-260VAC | 16A / 1 PHASE | 28.5VDC | 100A | 135A | 420 | 160 | 320 | 9 |
| LA200 (download datasheet) | 320-460VAC | 16A / 3 PHASE | 28.5VDC | 200A | 270A | 420 | 320 | 320 | 15 |
| LA300 (download datasheet) | 320-460VAC | 16A / 3 PHASE | 28.5VDC | 300A | 405A | 420 | 320 | 320 | 22 |
| LA400 (download datasheet) | 320-460VAC | 32A / 3 PHASE | 28.5VDC | 400A | 540A | 420 | 320 | 320 | 26 |
